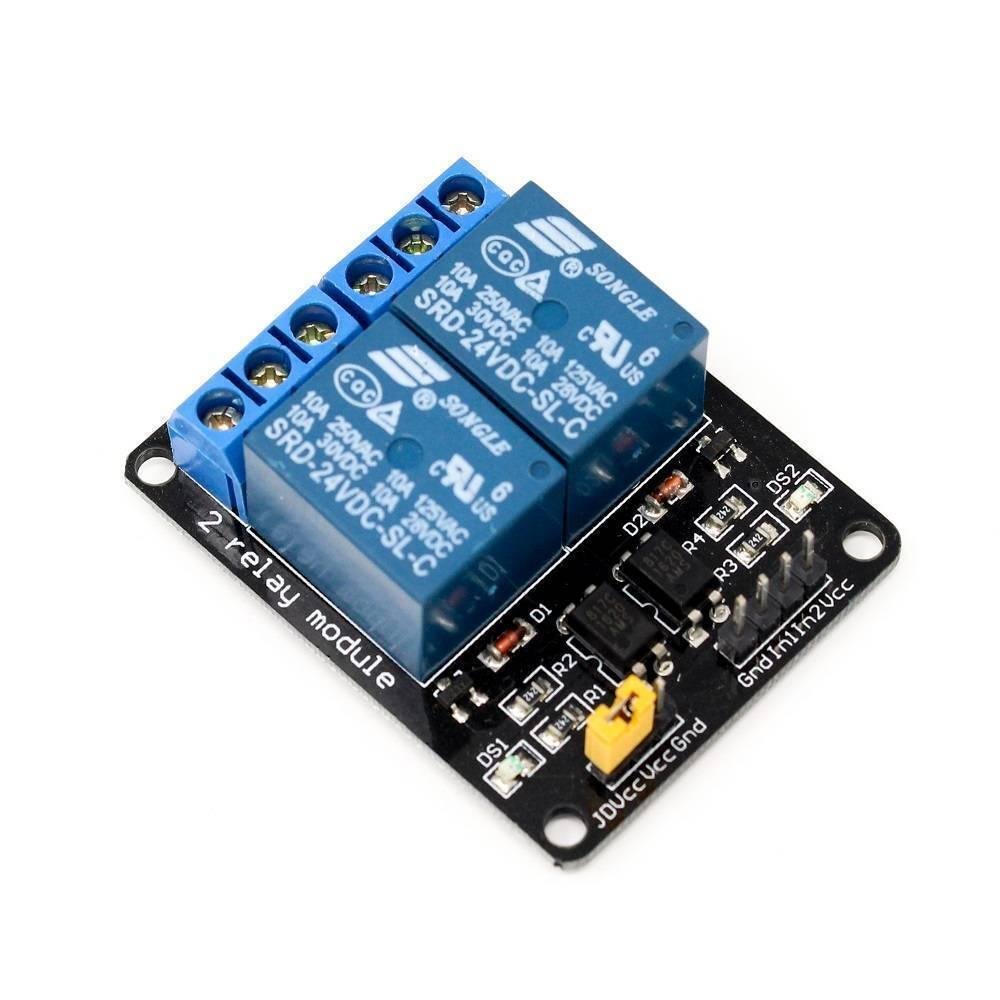

2 Channel Relay Module Relay Board Arduino Relay Module With Optocoupler
2 Channel Relay Module Relay Board Arduino Relay Module. With Optocoupler allows a wide range of microcontrollers. Such as Arduino, AVR, PIC, ARM with digital outputs to control larger loads and devices like AC or DC Motors, electromagnets, solenoids, and incandescent light bulbs. 4–channel relay interface board, and each channel needs a 15-20mA driver current. It can be used to control various appliance.
Description
2 Channel Relay Module Relay Board Arduino Relay Module. With Optocoupler allows a wide range of microcontrollers. Such as Arduino, AVR, PIC, ARM with digital outputs to control larger loads and devices like AC or DC Motors, electromagnets, solenoids, and incandescent light bulbs. 4–channel relay interface board, and each channel needs a 15-20mA driver current. It can be used to control various appliance
Specifications Of 2 Channel Relay Module Relay :
- 5V 2-Channel Relay interface board, and also each one needs 15-20mA Driver Current
- Equiped Equipped with high-current relay, AC250V 10A ; DC30V 10A
- Standard interface that can be control directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low)
- Opto-isolated inputs
- Indication LED’s for Relay output status
Module interface Of 2 Channel Relay Module Relay:
- The positive (according to the relay voltage VCC: connect power supply)
- GND: connect power negative
- IN1: relay module (effective) high-level trigger signal trigger end
- IN2: relay module (effective) high-level trigger signal trigger end
