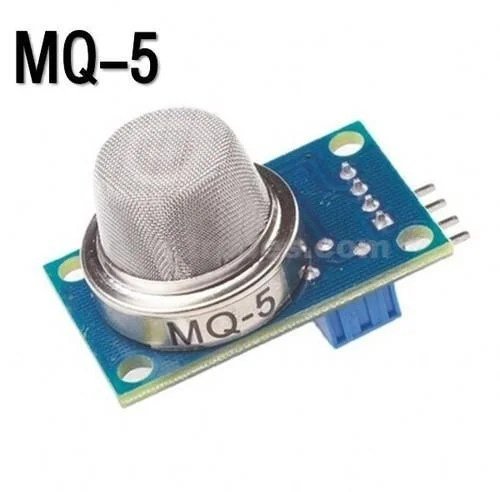

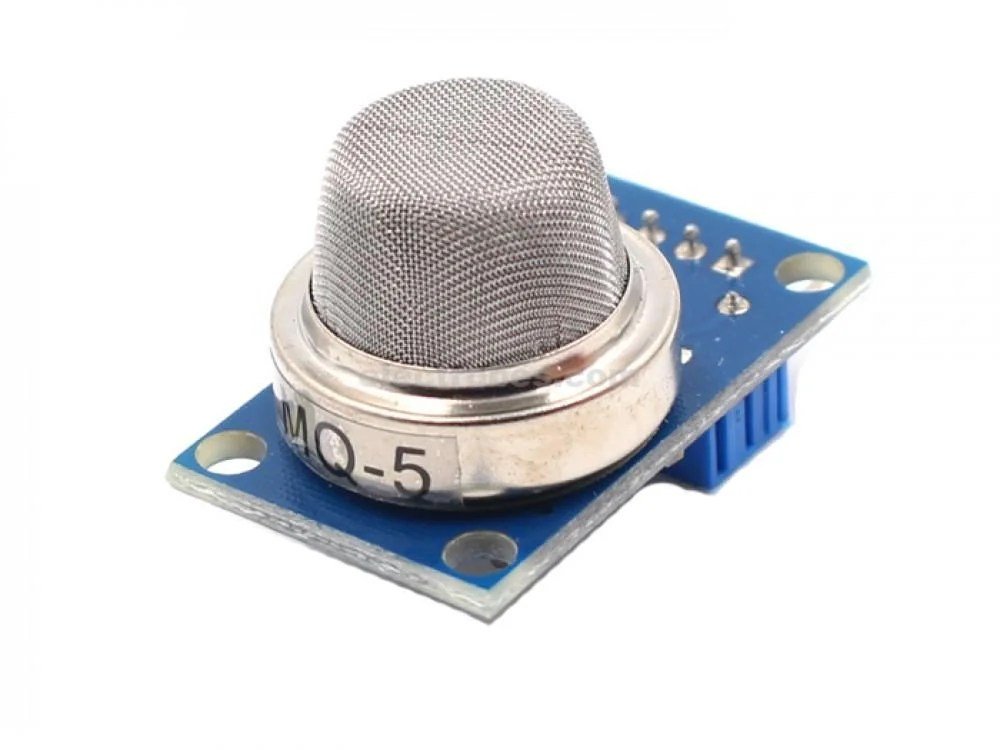

MQ-5 Natural/ LPG Gas Sensor Module
MQ-5 Natural/ LPG Gas Sensor Module are used in gas leakage detecting houses and industries. Sensitive for LPG, natural gas, coal gas.
Description
MQ-5 Natural/ LPG Gas Sensor Module for Arduino
Features
Small sensitivity to LPG, H2, LPG, CH4, and CO
Fast response
Stable and long life
Simple drive circuit
Indication of the signal output.
Dual signal output (analog output, and TTL level output)
TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
Liquefied petroleum gas, natural gas, city gas, better sensitivity.
Has a long life and reliable stability
Specifications
Working Voltage: 4.9V-5.1V
Heater Resistance: 31±10%
Adjustable Resistance
Sensing Resistance Range: 10 – 60K
Sensor Heat Consumption: 0.5-800mW
Detecting Concentration: 200-10000ppm
