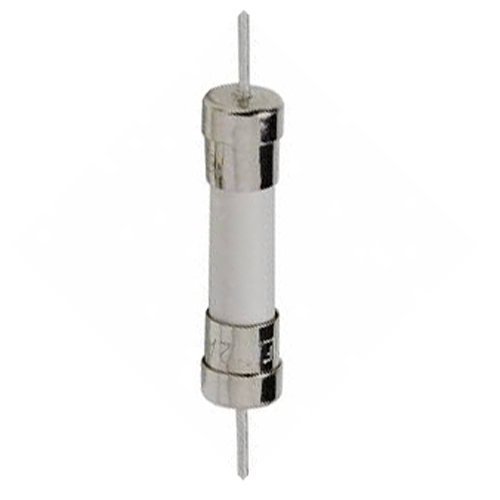

This 20A 250V Ceramic Axial Fuse is a robust circuit protection component designed to safeguard electronic devices against overcurrent and short circuits. Unlike standard glass fuses, this ceramic fuse is filled with a filler material (often sand) which provides a high breaking capacity, allowing it to safely interrupt higher currents without rupturing.
The fuse features pre-attached axial leads (pigtails), making it ideal for through-hole mounting directly onto printed circuit boards (PCBs) without the need for a fuse holder. It is commonly used in power supplies, microwave ovens, inverters, and heavy-duty industrial electronics.
Features:
-
High Breaking Capacity: Ceramic body construction prevents explosion during severe short circuits.
-
Axial Leads: Tinned wire leads allow for easy soldering directly to boards or wrapping around terminals.
-
Opaque Body: Ceramic tube offers better thermal, arc, and shock protection than glass equivalents.
-
Universal Application: Suitable for use in AC power lines and DC circuits up to 250V.
Specifications:
-
Current Rating: 20 Amps (20A)
-
Voltage Rating: 250V AC
-
Fuse Type: Ceramic Cartridge with Axial Leads
-
Mounting Style: Through-Hole (THT)
-
Body Material: Ceramic Tube with Nickel Plated Brass Caps
-
Lead Material: Tinned Copper
Package Includes:
-
1 x 20A 250V Ceramic Axial Lead Fuse
