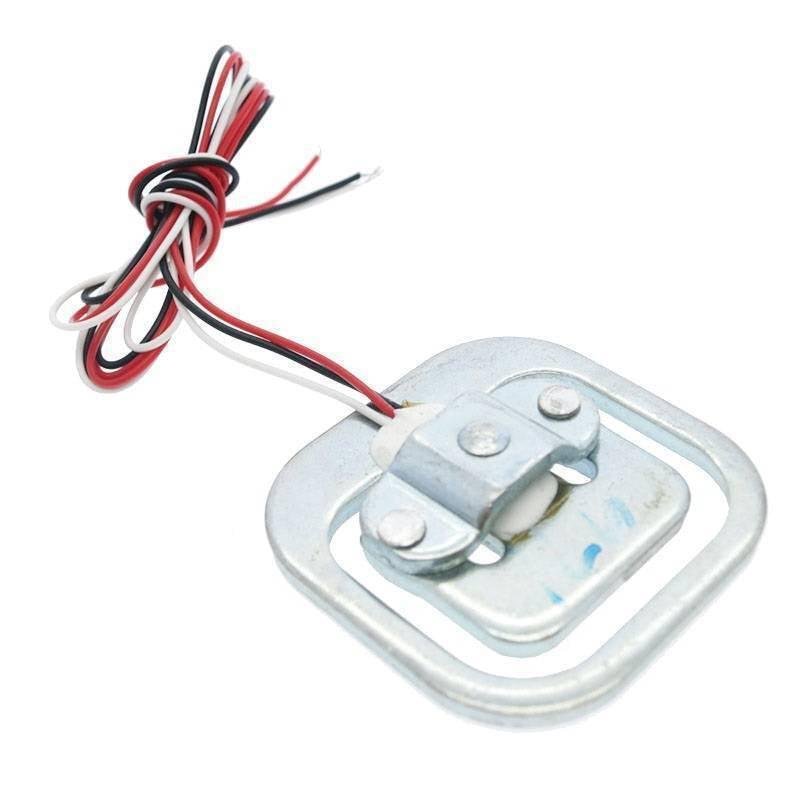

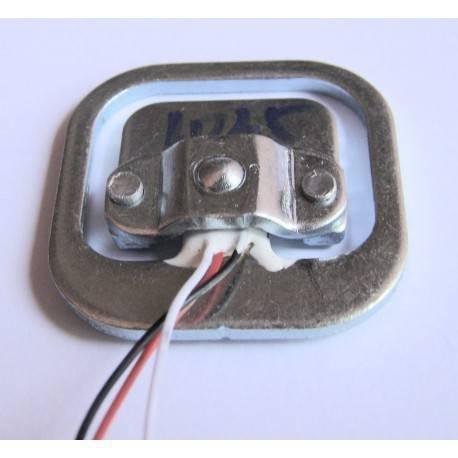

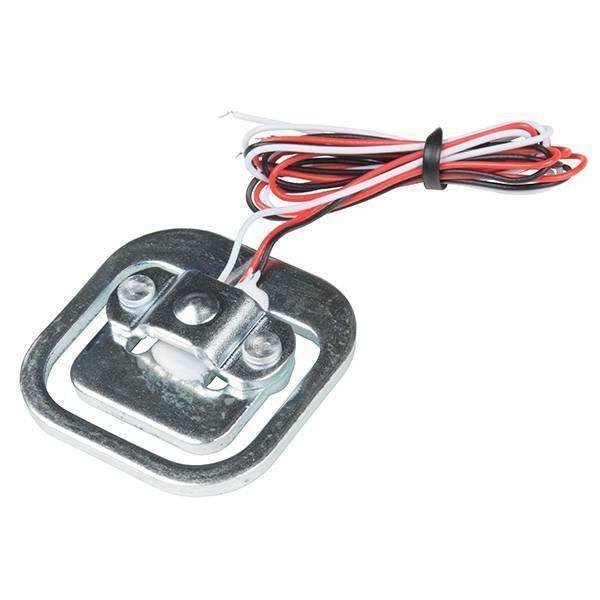

The 50kg Half Bridge Load Cell Sensor is a versatile and essential component for measuring weight in your projects. This high-performance sensor offers accurate and reliable measurements, making it ideal for various applications.
Key Features:
- 50kg Capacity: Measures weights up to 50 kilograms.
- Half Bridge Design: Provides a flexible and efficient measurement solution.
- High Accuracy and Sensitivity: Delivers precise and reliable readings.
- Durable Construction: Built to last with high-quality materials.
- Versatile Applications: Suitable for weighing scales, industrial automation, and more.
Specifications:
- Capacity: 50kg
- Output Sensitivity: 1.0 ± 0.15% mv/V
- Nonlinearity: 0.05%
- Repeatability: 0.05%
- Hysteresis: 0.05%
- Creep: 0.1%
- Zero Drift: 0.1%
- Temperature Effect: ±0.3%
- Input Resistance: 1000 ohms
- Output Resistance: 1000 ohms
- Insulation Resistance: 2000 MΩ
- Excitation Voltage: 10V
- Operation Temperature: -10°C to 50°C
Order Now:
Upgrade your projects with our 50kg Half Bridge Load Cell Sensor. Experience the accuracy, reliability, and versatility of this essential component.
