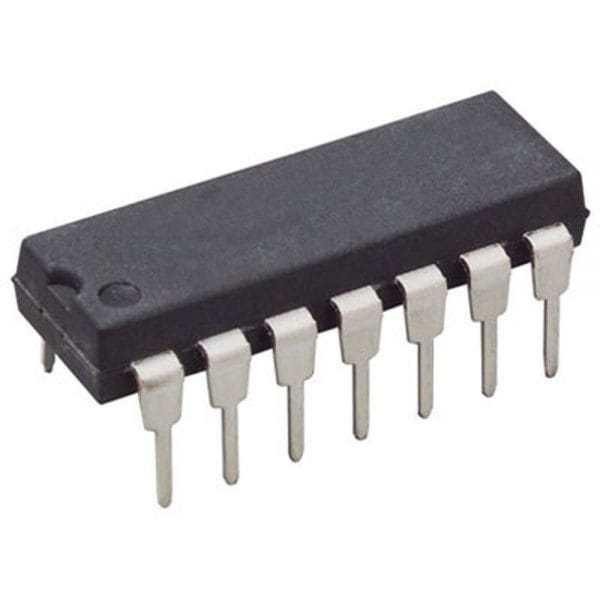

74153 74ls153 Dual 4 Input Multiplexer Ic

Each of these data selectors multiplexers contains inverters and drivers to supply full binary decoding data selection to the AND-OR gates. Separate strobe (G) inputs are provided for each of the two 4-line sections.

Features:

1. Wide Operating Voltage Range of 2 V to 6 V
2. Outputs Can Drive Up To 15 LSTTL Loads
3. Low Power Consumption, 80-µA Max I_CC
4. Typical t_pd = 9 ns
5. ±6-mA Output Drive at 5 V
6. Low Input Current of 1 µA Max
7. Permit Multiplexing from n Lines to One Line
8. Perform Parallel-to-Serial Conversion
9. Strobe (Enable) Line Provided for Cascading (N Lines to n Lines)

Datasheet:

• 74hc153 Datasheet

Package Includes:

• 1x Dual 4 Input Multiplexer IC 74hc153
