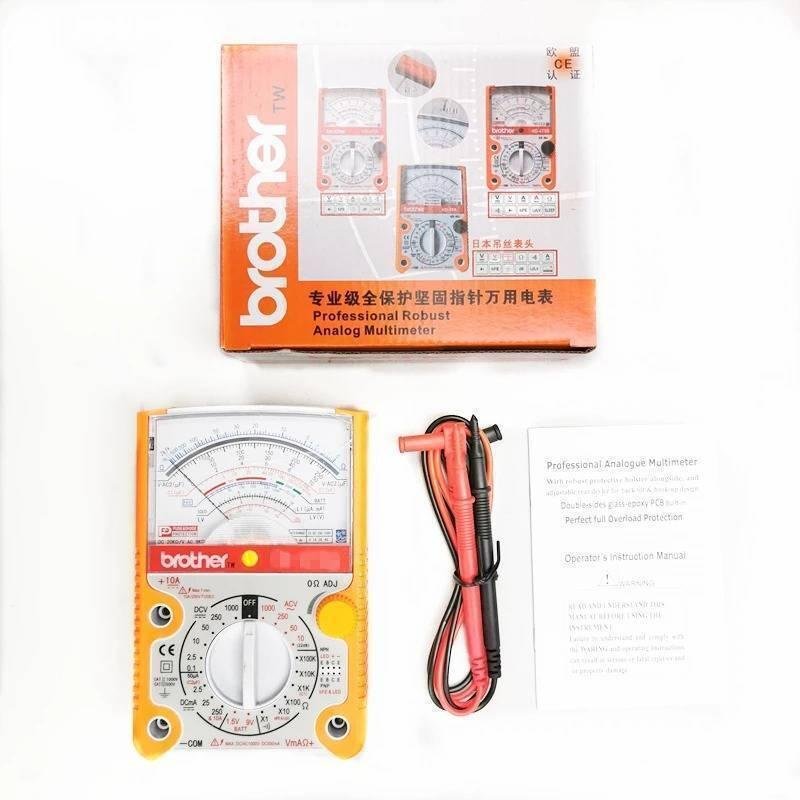

Brother HD-470A/390A/390C/390D Analog Multimeter High Precision Mechanical Electrician Home Maintenance Pointer Multimeter
HD-470A
Features:
AC voltage: 10/50/250/1000V
DC voltage: 0.1/2.5/10/50/250/1000V
DC current: 50uA/2.5mA/25mA/250mA/10A
Resistance: 1/10/100/1K/10KΩ
Battery: 1.5/9V
Standard environmental conditions: 23°C ± 5°C, temperature <75% RH
Working environment range: 0°C ~ 40°C, temperature <90% RH
Size: 160mm * 105mm * 40mm
HD-390A
Features:
AC voltage: 10/50/250/1000V
DC voltage: 0.1/2.5/10/50/250/1000V
DC current: 50uA/2.5mA/25mA/250mA/10A
Resistance: 1/10/100/1K/10K/100KΩ
Battery: 1.5/9V
Standard environmental conditions: 23°C ± 5°C, temperature <75% RH
Working environment range: 0°C ~ 40°C, temperature <90% RH
Size: 160mm * 105mm * 40mm
HD-390C
Features:
AC voltage: 10/50/250/1000V
DC voltage: 0.25/2.5/10/50/250/1000V
DC current: 100uA/2.5mA/25mA/250mA/10A
Resistance: 1/10/100/1K/10KΩ
Battery: 1.5/9V
Standard environmental conditions: 23°C ± 5°C, temperature <75% RH
Working environment range: 0°C ~ 40°C, temperature <90% RH
Size: 160mm * 105mm * 40mm
HD-390D
Features:
AC voltage: 0.1/0.5/2.5/10/50/250/1000V
DC voltage: 0.1/0.5/2.5/10/50/250/1000V
AC current: 0.05mA/0.25mA/2.5mA/25mA/250mA/10A
DC current: 0.05mA/0.25mA/2.5mA/25mA/250mA/10A
Resistance: 1/10/1K/10K100KΩ
Battery: 1.5/9V
Standard environmental conditions: 23°C ± 5°C, temperature <75% RH
Working environment range: 0°C ~ 40°C, temperature <90% RH
Size: 160mm * 105mm * 40mm
HD-390A+
Features:
Full protection
AC voltage: 10/50/250/1000V
DC voltage: 0.1/2.5/10/50/250/1000V
DC current: 50uA/2.5mA/25mA/250mA/10A
Resistance: 1/10/100/1K/10K/100KΩ
Battery: 1.5/9V
Standard environmental conditions: 23°C ± 5°C, temperature <75% RH
Working environment range: 0°C ~ 40°C, temperature <90% RH
Size: 160mm * 105mm * 40mm
