Product Overview

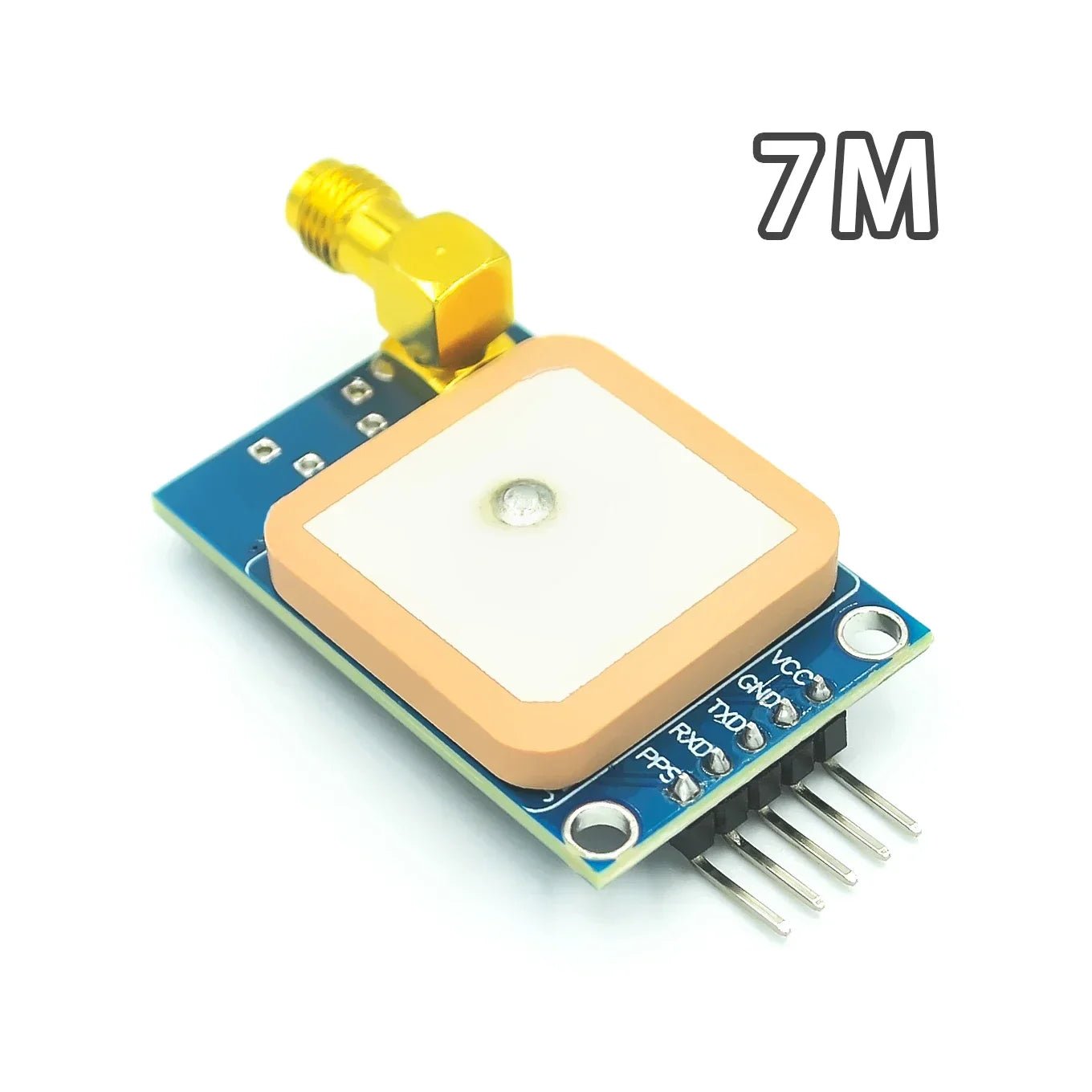

The NEO-7M GPS module provides reliable satellite positioning for your Arduino, Raspberry Pi, or microcontroller projects. Featuring a high-sensitivity receiver and micro USB interface, this module delivers accurate location data with minimal setup.
Key Features
- NEO-7M chipset – Industry-standard GPS receiver with proven reliability
- Micro USB interface – Simple plug-and-play connectivity for power and data
- External antenna connector – Supports active or passive antennas for improved signal reception
- UART serial output – Standard NMEA protocol for easy integration
- Low power consumption – Suitable for battery-powered applications
- Compact design – 18g lightweight module for portable projects
Technical Specifications
- Chipset: u-blox NEO-7M
- Frequency: L1 (1575.42 MHz)
- Channels: 50
- Position Accuracy: 2.5m CEP
- Update Rate: Up to 10 Hz
- Cold Start: ~27s (typical)
- Hot Start: ~1s (typical)
- Interface: UART (TTL level), Micro USB
- Baud Rate: 9600 bps (default, configurable)
- Operating Voltage: 3.3V – 5V DC
- Operating Current: ~45mA
- Operating Temperature: -40°C to +85°C
- Antenna Connector: IPEX/U.FL
- Weight: 18g
Applications
- GPS tracking and navigation systems
- Drone and UAV positioning
- Vehicle tracking and fleet management
- Robotics and autonomous vehicles
- IoT location-based services
- Data logging with geolocation
Package Contents
- 1 × NEO-7M GPS Module with Micro USB
- External antenna connector (antenna sold separately)
Note: External GPS antenna recommended for optimal performance, especially in indoor or obstructed environments.
