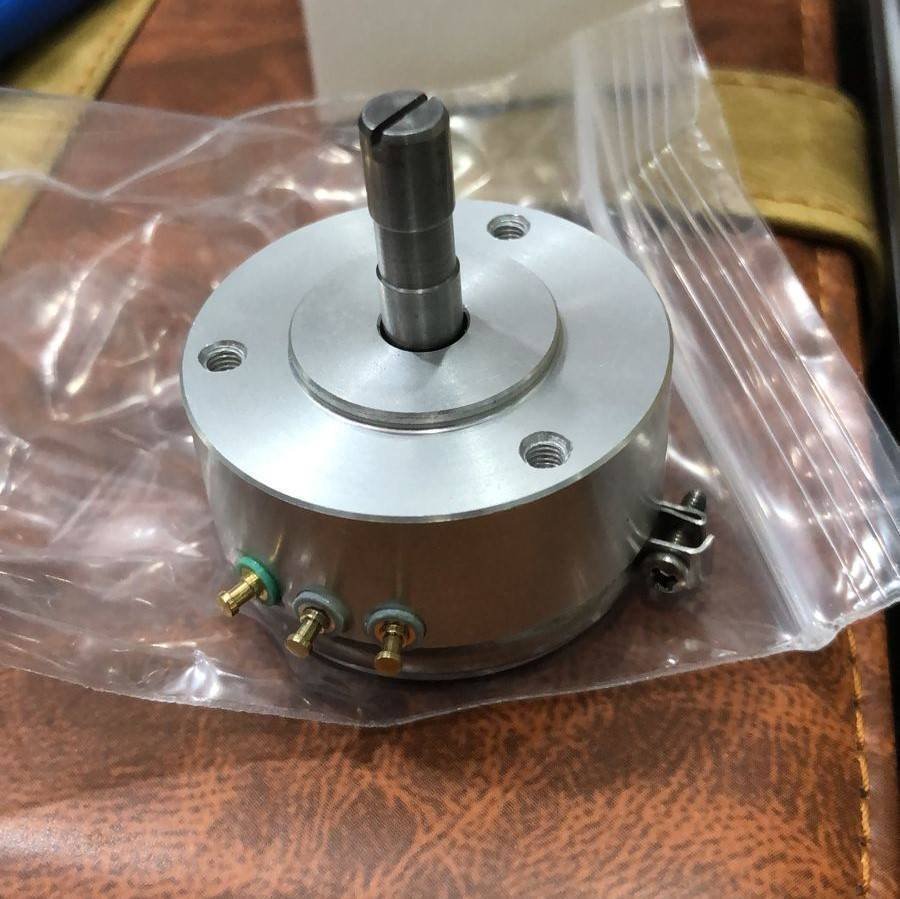

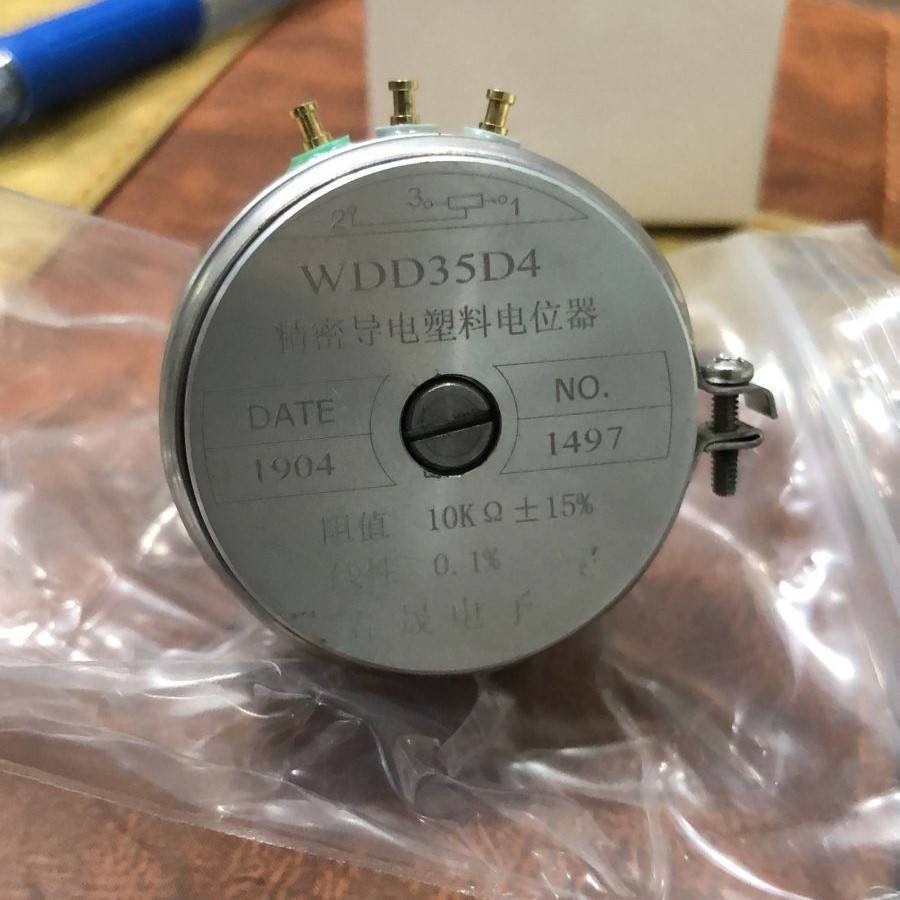

Wdd35d4 10k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

Its WDD35D4 10K OHM 2W Continues potentiometer Angle Sensor Displacement Senso used to get position of any object in industrial evnoirment and electrical noisy envoirement.

Specifications:

1. Outer diameter: 36.5mm, Shaft: 6mm.
2. Standard resistance: 1/2/5/10K
3. Resistance Tolerance: ± 15%
4. Independent Linearity: ± 0.5%, ± 0.1%
5. Theoretical electrical angle: 345 ° ± 2 °
6. Resolution: Unlimited
7. Power: 2W (70 degree)
8. Temperature Coefficient of Resistance (ppm / degree): <± 400
9. Operating temperature range: -55 degree -125 degree
10. Mechanical angle: 360 ° (continuous)

Package Includes:

•    1x WDD35D4 10K Resistor
